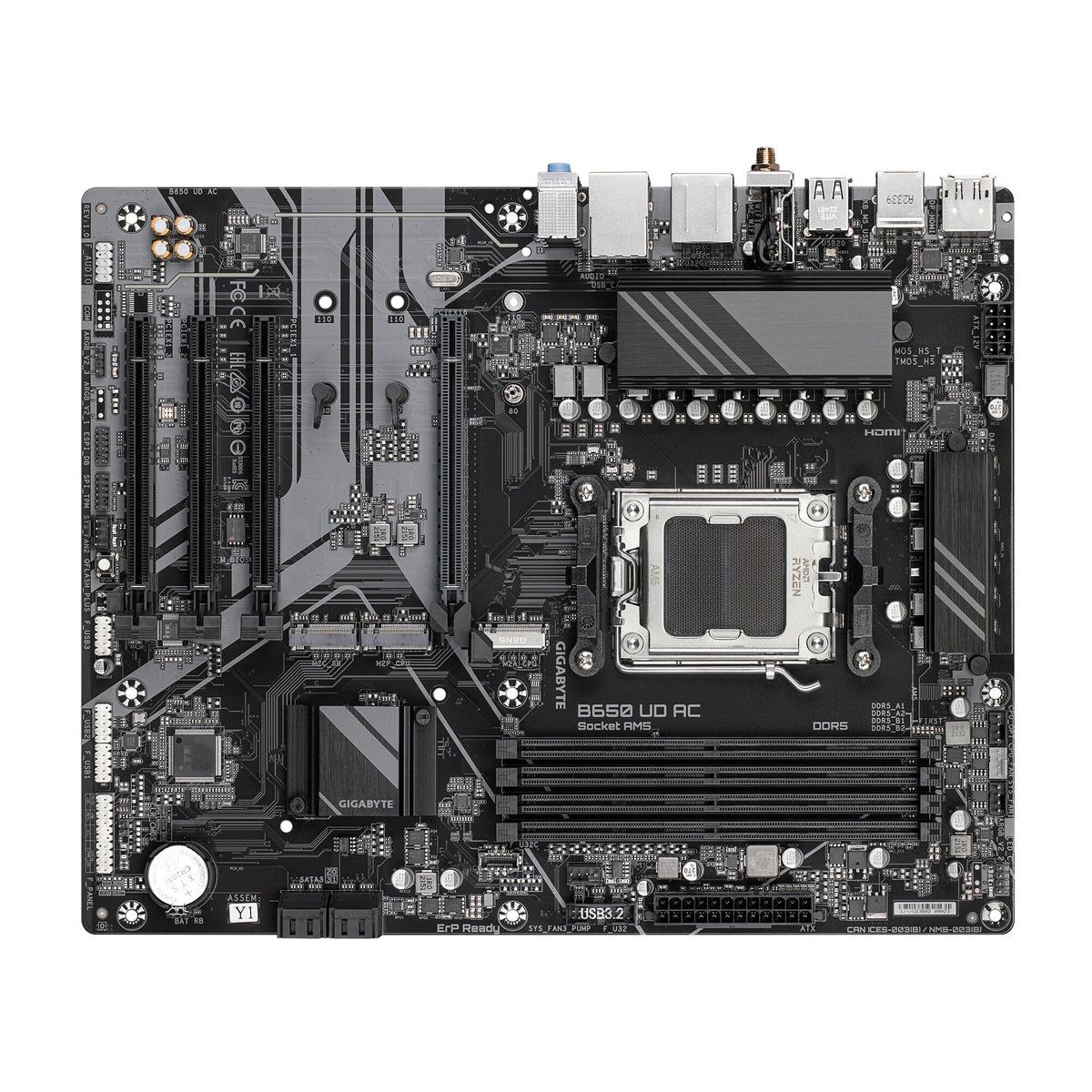

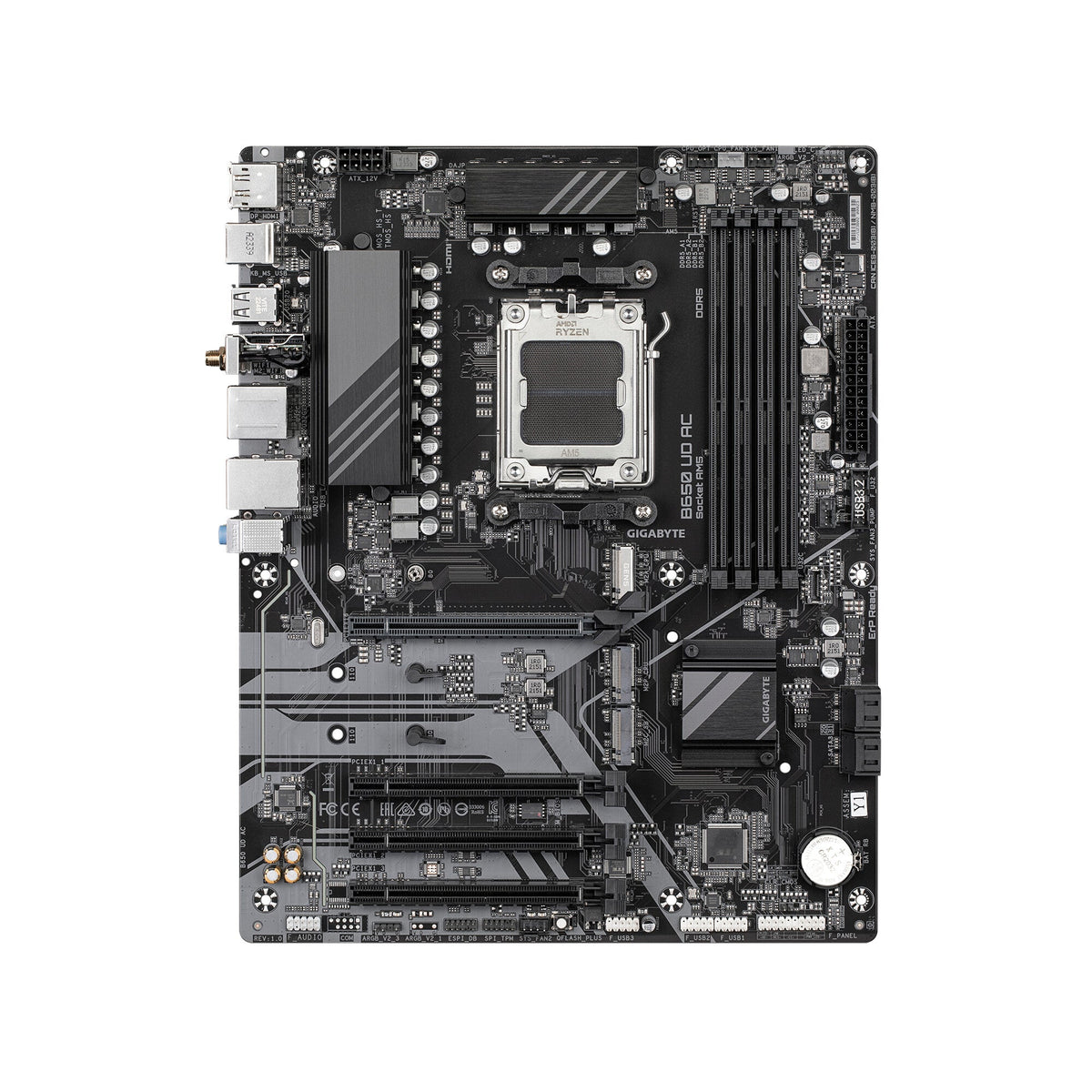

ATX, Socket AM5, AMD B650 chipset, 4x DDR5 DIMM, AMI UEFI BIOS
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Processor
Maximum internal memory supported by processor
192 GB
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor socket
Socket AM5
Processor manufacturer
AMD
Memory
Unbuffered memory
Yes
Maximum internal memory
192 GB
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
Non-ECC
Yes
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Storage controllers
RAID levels
0, 1, 10
RAID support
Yes
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Graphics
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
Internal I/O
RGB LED pin header
Yes
Serial port headers
1
TPM connector
Yes
12V power connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Front panel connector
Yes
Front panel audio connector
Yes
Total number of SATA connectors
4
Number of SATA III connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 2.0 connectors
3

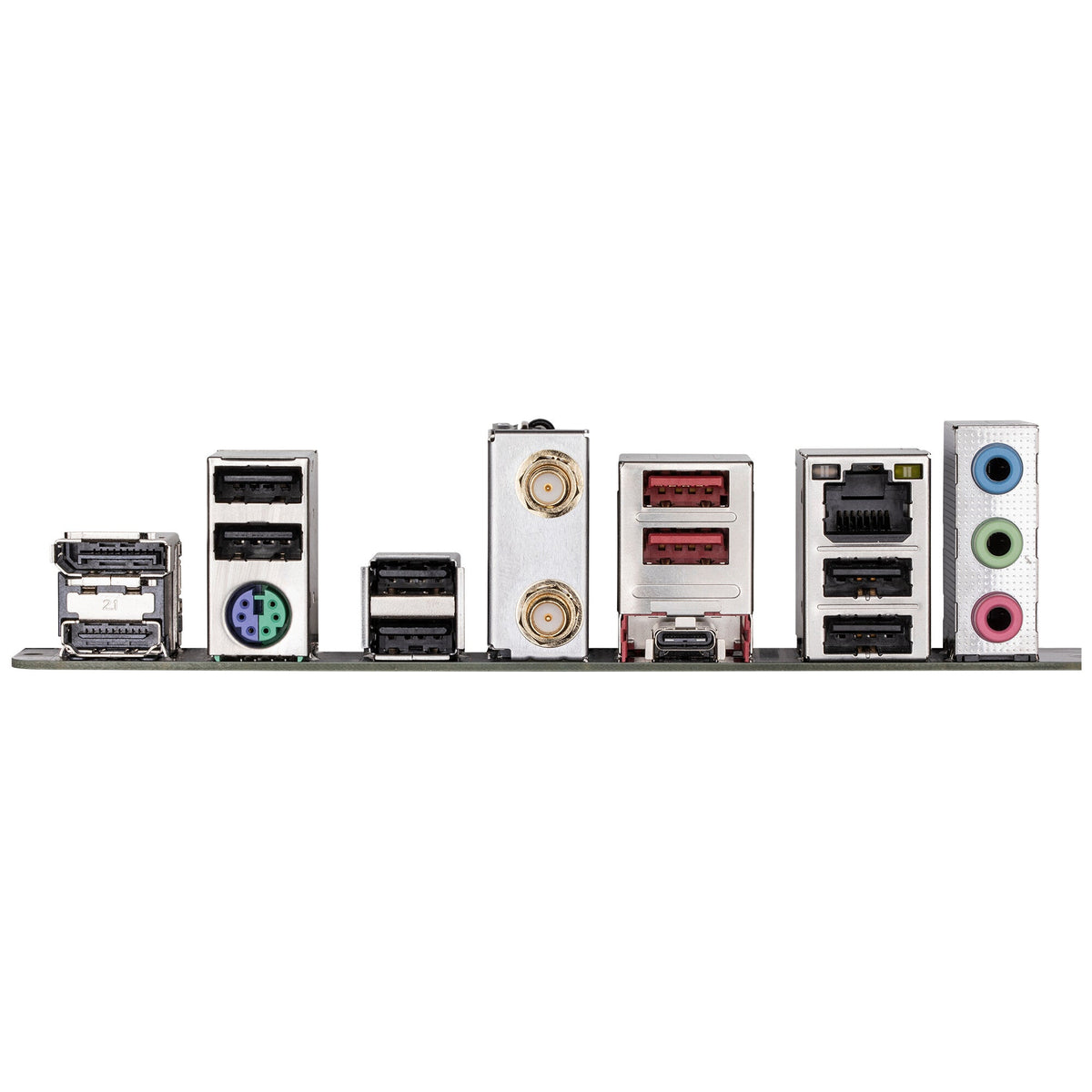

Rear panel I/O ports
USB connector type
USB Type-A, USB Type-C
WiFi-AP antenna jack
2
Microphone in
Yes
Headphone outputs
3
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
6
Network
Bluetooth version
5.0
Bluetooth
Yes
WLAN controller model
Realtek RTL8821CE
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Power source type
ATX
Cooling type
Active
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Product colour
Brown
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
Motherboard form factor
ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 slots
3
BIOS
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Clear CMOS button
Yes
Clear CMOS jumper
Yes
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Packaging data
Package weight
1.56 kg
Package height
80 mm
Package depth
270 mm
Package width
335 mm
Weight & dimensions
Height
35 mm
Depth
244 mm
Width
305 mm
Packaging content
Bundled software
Norton Internet Security (OEM version)LAN bandwidth management software
Cables included
SATA
Batteries included
Yes
Technical details
Warranty period
3 year(s)
